Industrial Networking Solutions
XPTN-9000-65-2GX8GT-XA
XPTN-9000-65-2GX8GP-X (PoE)
* Switch Unmanaged
* 8x10/100/1000Base-T, 2x1000Base-X(SFP)
* Shell: Blue aluminium housing
* EMC level: CLASS A
* Protocol: IEEE 802.3,IEEE 802.3u
* DIP switch: PoE WatchDog, Standard/Non-standard PoE Mode, Port Isolation, Reset
* Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC12-58V dual power supply
* DC48-58V dual power supply (PoE)
XPTN-9000-65-4GX8GP-X (PoE)
* Switch Unmanaged
* 8x10/100/1000Base-T, 4x1000Base-X(SFP)
* PoE: Port 1-8 support 802.3af/at 30W PoE, MAX PoE power 240W
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab
* Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC48-58V dual power supply
XPTN-9000-65-2GX16GP-X (PoE)
* Switch Unmanaged
* 16x10/100/1000Base-T, 2x1000Base-X(SFP)
* PoE: Ports 1-2 support bt 90W PoE(optional),Port 1-16 support 802.3af/at 30W PoE, MAX PoE power 360W
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab
* Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC48-58V dual power supply
XPTN-9000-87-2GX4GT-VX
XPTN-9000-87-2GX4GP-VX (PoE)
* Switch Managed L2+
* 4x10/100/1000Base-T, 2x1000Base-X(SFP)
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab
* Function: WEB Management, CLI, SNMP v1/v2/v3, RMON, NTP,STP/RSTP/MSTP, ERPS Ring Network, Strom Suppression, Port Isolation, IGMP Snoopping, VLAN, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan,IPV4/IPV6 Static Routing
* Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC12-58V dual power supply
* DC48-58V dual power supply (PoE)
XPTN-9000-65-4GX24GP-X (PoE)
* Switch Unmanaged
* 24x10/100/1000Base-T, 4x1000Base-X(SFP)
* PoE: Port1-2,23-24 support bt 90W PoE(optional),port 1-24 support 802.3af/at 30W PoE, MAX PoE power 360W
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3z,IEEE 802.3ab
* Working temperature:-40℃~+85℃
* Surge protection: 6KV
* DC48-58V dual power supply
XPTN-9000-87-8GT-VX
XPTN-9000-87-8GP-VX (PoE)
* Switch Managed L2+
* 8x10/100/1000Base-T
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab
* Function: WEB Management, CLI, SNMP v1/v2/v3, RMON, NTP,STP/RSTP/MSTP, ERPS Ring Network, Strom Suppression, Port Isolation, IGMP Snoopping, VLAN, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan,IPV4/IPV6 Static Routing
* Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC12-58V dual power supply
* DC48-58V dual power supply (PoE)
XPTN-9000-87-2GX8GT-VX
XPTN-9000-87-2GX8GP-VX (PoE)
* Switch Managed L2+
*8x10/100/1000Base-T, 2x1000Base-X(SFP)
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab
* Function: WEB Management, CLI, SNMP v1/v2/v3, RMON, NTP,STP/RSTP/MSTP, ERPS Ring Network, Strom Suppression, Port Isolation, IGMP Snoopping, VLAN, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan,IPV4/IPV6 Static Routing
* Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC12-58V dual power supply
* DC48-58V dual power supply (PoE)
XPTN-9000-87-4GX8GT-VX
XPTN-9000-87-4GX8GP-VX (PoE)
* Switch Managed L2+
*8x10/100/1000Base-T, 4x1000Base-X(SFP)
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab
* Function: WEB Management, CLI, SNMP v1/v2/v3, RMON, NTP,STP/RSTP/MSTP, ERPS Ring Network, Strom Suppression, Port Isolation, IGMP Snoopping, VLAN, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan,IPV4/IPV6 Static Routing
* Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC12-58V dual power supply
* DC48-58V dual power supply (PoE)
XPTN-9000-87-2GX16GT-VX
XPTN-9000-87-2GX16GP-VX (PoE)
* Switch Managed L2+
*16x10/100/1000Base-T, 2x1000Base-X(SFP)
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab
* Function: WEB Management, CLI, SNMP v1/v2/v3, RMON, NTP,STP/RSTP/MSTP, ERPS Ring Network, Strom Suppression, Port Isolation, IGMP Snoopping, VLAN, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan,IPV4/IPV6 Static Routing
* Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC12-58V dual power supply
* DC48-58V dual power supply (PoE)
XPTN-9000-87-4GX16GT-VX
XPTN-9000-87-4GX16GP-VX (PoE)
* Switch Managed L2+
*16x10/100/1000Base-T, 4x1000Base-X(SFP)
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab
* Function: WEB Management, CLI, SNMP v1/v2/v3, RMON, NTP,STP/RSTP/MSTP, ERPS Ring Network, Strom Suppression, Port Isolation, IGMP Snoopping, VLAN, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan,IPV4/IPV6 Static Routing
* Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC12-58V dual power supply
* DC48-58V dual power supply (PoE)
XPTN-9000-87-4GX24GT-VX
XPTN-9000-87-4GX124GP-VX (PoE)
* Switch Managed L2+
*24x10/100/1000Base-T, 4x1000Base-X(SFP)
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab
* Function: WEB Management, CLI, SNMP v1/v2/v3, RMON, NTP,STP/RSTP/MSTP, ERPS Ring Network, Strom Suppression, Port Isolation, IGMP Snoopping, VLAN, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan,IPV4/IPV6 Static Routing
* Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC12-58V dual power supply
* DC48-58V dual power supply (PoE)
XPTN-9000-87-2GX8GP8B-VX
* Switch Managed L2+
* 8x10/100/1000Base-T, 2x1000Base-X(SFP), 1xConsole
* PoE: Port 1-8 support bt 90W PoE, MAX PoE power 730W
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab
* Function: WEB Management, CLI, SNMP v1/v2/v3, RMON, NTP,STP/RSTP/MSTP, ERPS Ring Network, Strom Suppression, Port Isolation, IGMP Snoopping, VLAN, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan,IPV4/IPV6 Static Routing
* Working temperature: -30℃~+65℃（Full PoE)
* Surge protection: 6KV
* DC48-58V dual power supply(PoE)
XPTN-9000-87-4GX8GP8B-VX (PoE)
* Switch Managed L2+
* 8x10/100/1000Base-T, 4x1000Base-X(SFP), 1xConsole
* PoE: Port 1-8 support bt 90W PoE, MAX PoE power 730W
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab
* Function: WEB Management, CLI, SNMP v1/v2/v3, RMON, NTP,STP/RSTP/MSTP, ERPS Ring Network, Strom Suppression, Port Isolation, IGMP Snoopping, VLAN, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan,IPV4/IPV6 Static Routing
* Working temperature: -30℃~+65℃（Full PoE)
* Surge protection: 6KV
* DC48-58V dual power supply (PoE)
XPTN-9000-87-4XG16GT-VX
XPTN-9000-87-4XG16GP-VX (PoE)
* Switch Managed L2+
* 16x10/100/1000Base-T, 4x10GBase-X(SFP+)
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3ae
* Function: WEB Management, CLI, SNMP v1/v2/v3, RMON, NTP, STP/RSTP/MSTP, ERPS Ring Network, Strom Suppression, Port Isolation, IGMP Snoopping, VLAN, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan, Static IPV4 Route, DHCP Server
* Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC12-58V dual power supply
* DC48-58V dual power supply (PoE)
XPTN-9000-87-4XG24GT-VX
XPTN-9000-87-4XG24GP-VX (PoE)
* Switch Managed L2+
* 24x10/100/1000Base-T, 4x10GBase-X(SFP+)
* Shell: Blue aluminium housing, IP50
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab,IEEE 802.3ae
* Function: WEB Management, CLI, SNMP v1/v2/v3, RMON, NTP, STP/RSTP/MSTP, ERPS Ring Network, Strom Suppression, Port Isolation, IGMP Snoopping, VLAN, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan, Static IPV4 Route, DHCP Server
* Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC12-58V dual power supply
* DC48-58V dual power supply (PoE)

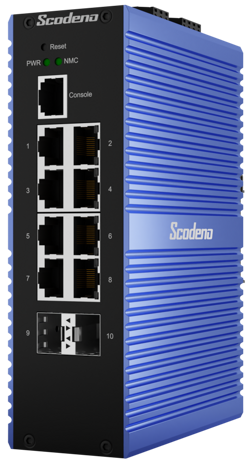

XPTN-9000-87-2GX8GT-VXA
XPTN-9000-87-2GX8GP-VXA (PoE)
* Switch Managed - CLASSE A
* 8x10/100/1000Base-T, 2x1000Base-X(SFP), 1xConsole
* Shell: Aluminium housing
* EMC level: CLASS A
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab
* Function: WEB Management, CLI, SNMP v1/v2/v3, RMON, SNTP, STP/RSTP/MSTP, ERPS Ring Network, Strom Suppression, Port Isolation, IGMP Snoopping, VLAN, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan,Static IPv4 Route,DHCP Server
*Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC18-58V dual power supply
* DC48-58V dual power supply (PoE)

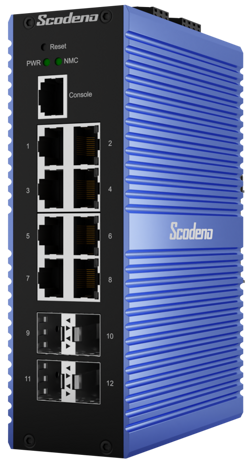

XPTN-9000-87-4GX8GT-VXA
XPTN-9000-87-4GX8GP-VXA (PoE)
* Switch Managed - CLASSE A
* 8x10/100/1000Base-T, 4x1000Base-X(SFP), 1xConsole
* Shell: Aluminium housing
* EMC level: CLASS A
* Protocol: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z,IEEE 802.3ab
* Function: WEB Management, CLI, SNMP v1/v2/v3, RMON, SNTP, STP/RSTP/MSTP, ERPS Ring Network, Strom Suppression, Port Isolation, IGMP Snoopping, VLAN, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan,Static IPv4 Route,DHCP Server
*Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC18-58V dual power supply
* DC48-58V dual power supply (PoE)

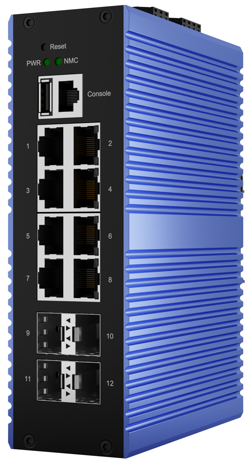

XPTN-9000-88-4XG8GT-VXA
XPTN-9000-88-4XG8GP-VXA (PoE)
* Switch Managed L3 - CLASSE A
* 8x10/100/1000Base-T, 4x10GBase-X(SFP), 1xConsole，1xUSB
* Shell: Aluminium housing
* EMC level: CLASS A
* Protocol: IEEE802.3, IEEE802.3u, IEEE 802.3z, IEEE 802.3x, IEEE802.3ab, IEEE802.3ae
WEB Management, CLI, SNMP v1/v2/v3,RMON, NTP, RSTP/MSTP/ERPS Ring Network,Strom Suppression, Port Isolation, VLAN, IGMP Snoopping, ACL, QoS, Port Mirroring, IPV4/IPV6 Address Management, Device Scan, Power Failure Alarm, Static IPV4 Route, OSPF, RIP, BGP4, VRRP, DHCP Server
* Working temperature: -40℃~+85℃
* Surge protection: 6KV
* DC18-58V dual power supply
* DC48-58V dual power supply (PoE)
